Name: Merging AKDG8DP
SKU: 58835
Availability: InStock

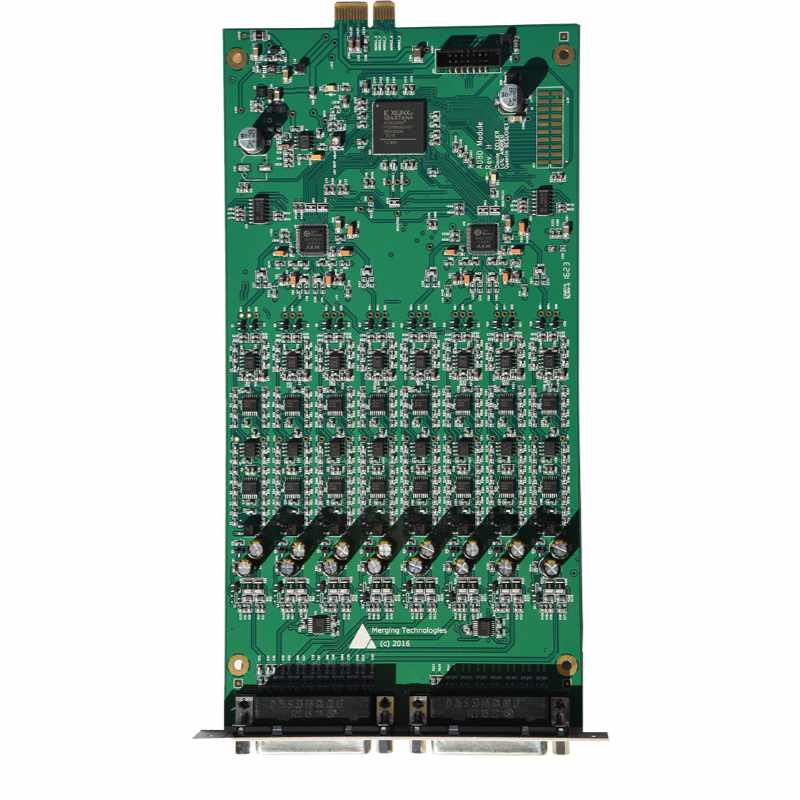

Merging AKDG8DP

2.850€ TTC

Option 8 canaux Mic/Line Dual Gain A/D module avec sortie directe pour Merging Horus et Hapi.

Catégorie : Cartes audio

Merging AKDG8DS est l’option pour Horus & Hapi. Elle propose 8 canaux Mic/Line Dual Gain A/D module avec sortie directe, avec DSD/DXD Premium

Caractéristiques détaillées

Mic Pre Max Input (Mic+Pad / Mic / Boost)	+24 dBu / +12 dBu / +0 dBu
Mic Pre Max Input (Pad On; Pad Off)	> 3 kΩ; 10.4 kΩ
Input Impedance (Zlo; ZHi)	> 3 kΩ; 10.4 kΩ
Dynamic Range (flat 20 Hz-20 kHz)	> 134 dB
Dynamic Range (A-weighted, typ)	136 dB
Gain Range (software controlled)	0 dB to +66 dB
Gain Precision	±0.2 dB
Gain Step	0.5 dB
THD+N Pre + A/D (20 Hz-20 kHz) @ -2 dBFS	-110 dB (0.00031 %)/-112 dB (0.00025 %)
Interchannel Crosstalk @ 1kHz, typ.	<-125dB
Interchannel Crosstalk @ 20Hz – 20 kHz	< -100 dB
EIN @ >40 dB Gain (150Ω Source Impedance, A-weighted, typ)	-128 dBu
Common Mode Rejection Rate @ 1kHz, typ.	75 dB (up to -20 dBFS)
Common Mode Rejection Rate @ 20Hz – 20 kHz	> 60 / 65 dB (up to -20 dBFS)
Phantom Power (Software Switchable Per Channel)	+48 Volts
Phase Reverse Switch (Software Switchable Per Channel)	Yes
Low Cut filter (Software Switchable Per Channel)	-12 dB/octave, 80 Hz

Frequency response +0/-0.1dB @ fs = 44100 Hz	5.7 Hz – 20.5 kHz
Frequency response +0/-1.0dB @ fs = 44100 Hz	1.8 Hz – 21.0 kHz
Frequency response +0/-0.1dB @ fs = 96000 Hz	5.7 Hz – 43.9 kHz
Frequency response +0/-1.0dB @ fs = 96000 Hz	1.8 Hz – 45.4 kHz
Frequency response +0/-0.1dB @ fs = 192000 Hz	5.7 Hz – 42.1 kHz
Frequency response +0/-1.0dB @ fs = 192000 Hz	1.8 Hz – 64.7 kHz
Frequency response +0/-0.1dB @ fs = 384000 Hz	5.7 Hz – 40 kHz
Frequency response +0/-1.0dB @ fs = 384000 Hz	1.8 Hz – 75 kHz
Max Line Input for 0 dBFS	+24 dBu
Input Impedance	10.4 kΩ
Dynamic Range (flat 20 Hz-20 kHz), ref +24 dBu	> 136 dB
Dynamic Range (A-weighted, typ), ref +24 dBu	138.5 dB
THD+N Line+A/D (1 kHz) @ -2 dBFS, Typ.	-106 dB (0.0005%)/-109 dB (0.00035%)
THD+N Line+A/D (20 Hz-20 kHz) @ -2 dBFS	< -106 dB
Interchannel Crosstalk @ 1kHz, typ.	-130 dB
Interchannel Crosstalk @ 20Hz – 20 kHz	< -100 dB
Sensitivity Range for 0 dBFS (software controlled)	-42 dBu to +24 dBu
Gain Precision	±0.2 dB
Gain Step	0.5 dB
Common Mode Rejection Rate @ 1kHz, typ.	75 dB (up to -20 dBFS)
Common Mode Rejection Rate @ 20Hz – 20 kHz	> 65 dB (up to -20 dBFS)
Group Delay (1FS)	5/fs
Group Delay (2FS)	5/fs
Group Delay (4FS) / Premium (8FS)	6/fs / 7/fs

Max Direct Output level typ.	+24 dBu / +12 dBu / +0 dBu
Output Impedance (Differential)	< 100 Ω
THD+N (1 kHz) @ +10dBu	< -111dB (0.00028 %)
Input Connector Pinout	DB-25 / AES59 (Tascam Ana.)
Direct Output Connector Pinout	DB-25 / AES59 (Tascam Ana.)
